DISTRIBUTION BOARD FOR SAFRIPOL


This is the main distribution board for the Safripol plant that is fed by 6 transformers and the board itself then feeds a total of 24 MCC’s. The original distribution board showed signs of serious aging and the changeover methodology was a complex and dangerous activity.

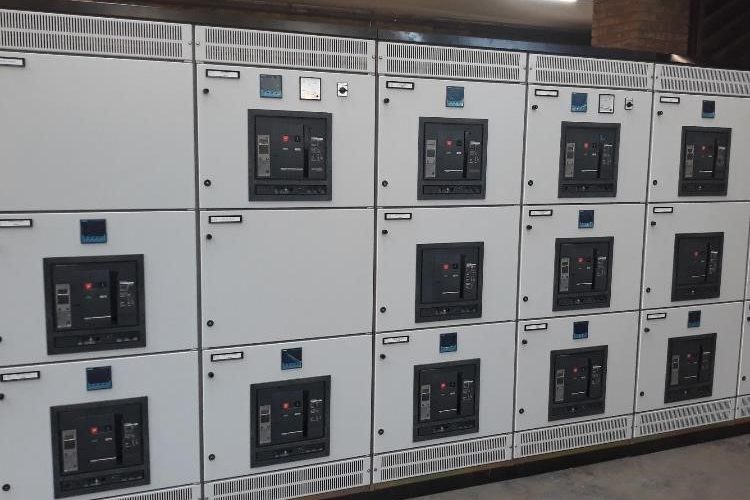

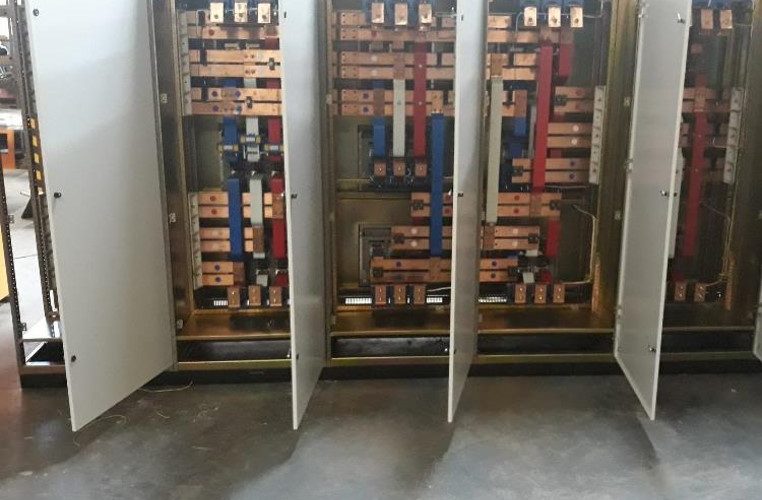

Hamar Controls was awarded the tender for a new double busbar board. The new, more technologically advance board would replace the existing board. The new board is also fully automated and interlocked to prevent complex changeover procedures.

Project Details


  • Started: Jan 2019
  • Location: Sasolburg, Free state Province, South Africa
  • Rating: 2000A@50kA, 525VAC
  • Spec: 3 Incomers, 2 Bus Couplers, 10 Feeders
